Launch CNS Lab
Pioneering CNS/ATM aviation simulation in Vietnam

Digitizing technical training for
communication, navigation, surveillance

CNSVN is an aviation educational technology (EdTech) startup delivering interactive simulation platforms for CNS/ATM ground stations compliant with international standards (USA, South Korea, Indra Spain). Empowering engineers and ATSEP personnel to master operations safely in simulation.

Experience simulator labs Explore GitHub repo
05/2026
Founded date
100% Bootstrapped
Self-funded & tech sovereign
5+ Systems
DVOR, DME, ADS-B, VHF, VSAT
USA • KOR • INDRA
Industrial avionics standard
Vietnam aviation infrastructure

Air traffic management & CNS stations across Vietnam

Real-world surveillance radar domes, air traffic control towers, and navigation aids in Hanoi, Danang, and Ho Chi Minh City simulated within our educational platforms.

Son Tra Radar Station Da Nang DAD • VVDN
// PSR / MSSR SURVEILLANCE

Sơn Trà radar station (Đà Nẵng)

The strategic radar surveillance dome on Son Tra Peninsula monitoring international airways across Central Vietnam and the East Sea flight information region (FIR).

Primary / Secondary Radar • Operational
Tan Son Nhat Airport Control Tower SGN • VVTS
// TWR / APP / SMR CONTROL

Tân Sơn Nhất control tower (HCMC)

High-density aerodrome air traffic control tower and surface movement radar (SMR) hub managing terminal approach and runway safety in Southern Vietnam.

VHF Voice / SMR Radar • High Density
Noi Bai International Airport Terminal and Airfield HAN • VVNB
// DVOR / DME / CAT II NAVAID

Nội Bài airport & navigation aids

Capital airport hub equipped with Doppler VOR, DME transponders, ILS CAT II landing systems, and automated weather observation sensors (AWOS).

DVOR/DME / ILS Ground • Hub Airport
Vietnam Airlines Boeing 787-9 Dreamliner Avionics HVN • B787-9
// AIRBORNE CNS INTERACTION

Modern national airline fleet

Boeing 787 and Airbus A350 fleet equipped with Mode S Transponders, 1090 MHz ADS-B Out/In, DME Interrogators, and VHF 8.33 kHz transceivers.

Mode S / ADS-B / DME • Connected
National CNS network & engineering crews

Vietnam navigation & surveillance ground stations

Authentic collective photography of CNS stations, antenna counterpoises, equipment shelters, and engineering teams stationed across Northern, Central, Southern Vietnam, and offshore maritime outposts.

Nội Bài CNS ground station (Hanoi) NOB • VVNB
Northern region DVOR / DME / ADS-B

Nội Bài CNS ground station (Hanoi)

Key navigation and surveillance station at the capital international airport, supporting CAT II instrument approach procedures.

Operational station

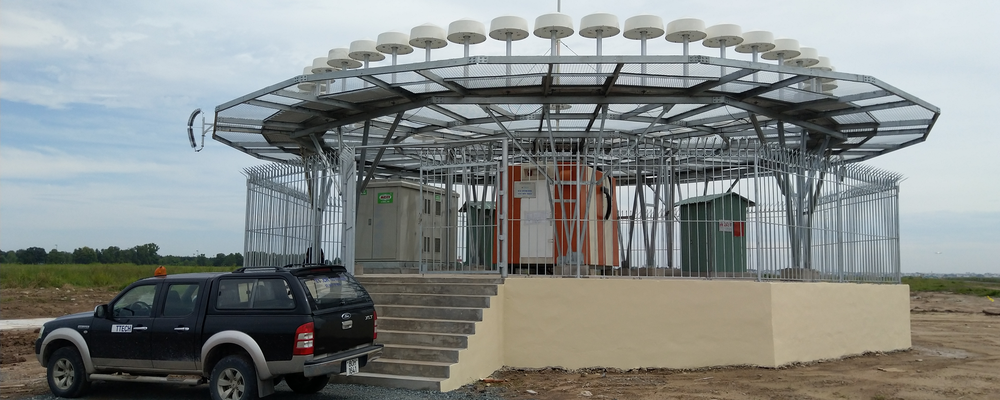

Tân Sơn Nhất CNS station (HCMC) TSH • VVTS
Southern region DVOR / DME / VHF

Tân Sơn Nhất CNS station (HCMC)

High-density navigation station managing terminal arrival, departure, and airway routing across Southern Vietnam.

Operational station

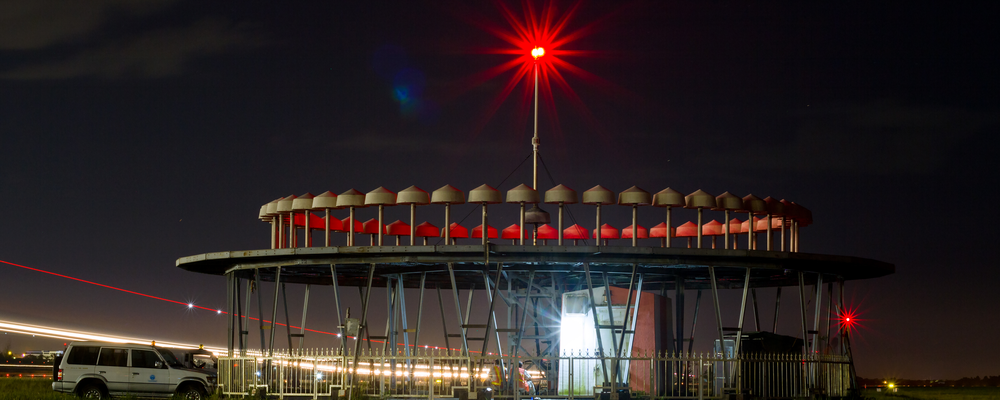

Đà Nẵng CNS ground station DAN • VVDN
Central region DVOR / DME / ADS-B

Đà Nẵng CNS ground station

Central airway intersection station providing en-route navigation across domestic and international trunk routes.

Operational station

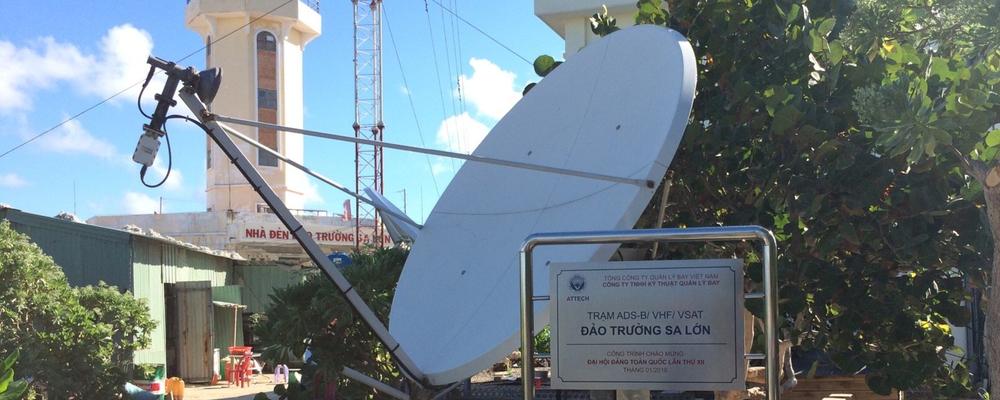

Trường Sa Lớn island CNS station TSL • TSL
Maritime islands ADS-B / VHF / VSAT

Trường Sa Lớn island CNS station

Remote maritime CNS station ensuring continuous air-ground VHF voice communication and ADS-B surveillance over the East Sea.

Operational station
Cam Ranh CNS station (Khánh Hòa) CAR • VVCR
Central region DVOR / DME / ADS-B

Cam Ranh CNS station (Khánh Hòa)

Coastal international navigation facility directing heavy tourist charters and international flights into Central Vietnam.

Operational station

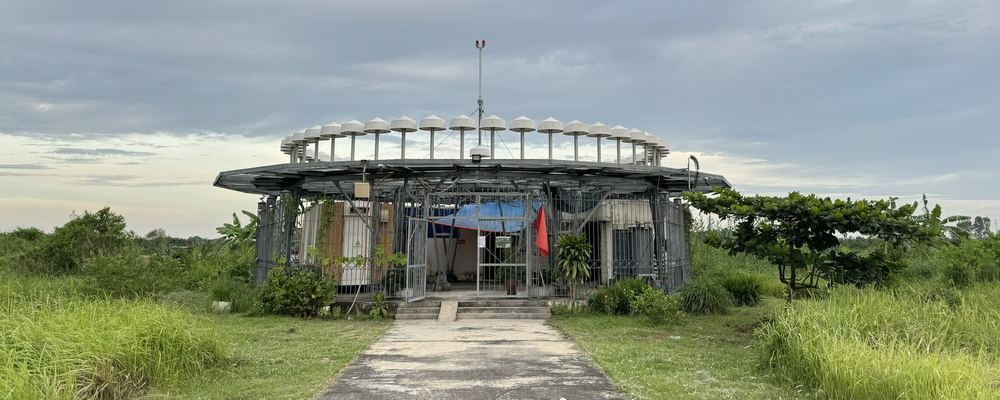

Cát Bi CNS station (Hải Phòng) CBI • VVCI
Northern region DVOR / DME / ADS-B

Cát Bi CNS station (Hải Phòng)

Coastal navigation facility in the northeastern aviation corridor coordinating flights into Cat Bi and Halong airspace.

Operational station

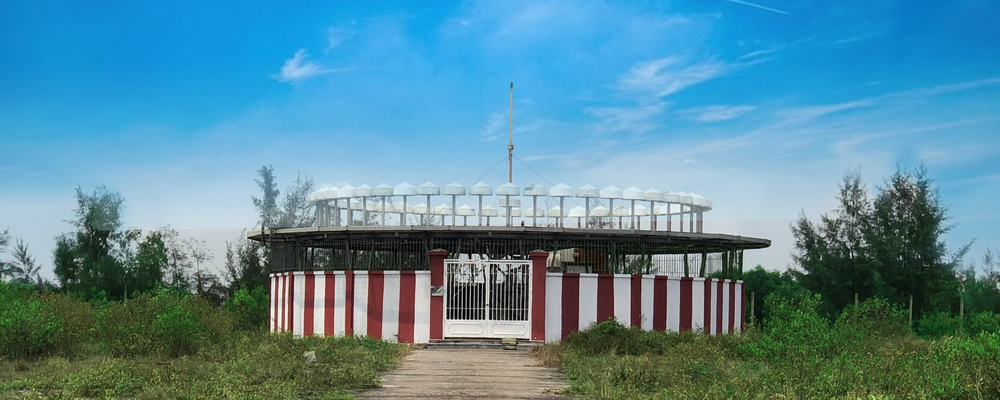

Phú Bài CNS station (Huế) HUE • VVPB
Central region DVOR / DME

Phú Bài CNS station (Huế)

Heritage air corridor navigation station with DVOR Doppler antenna counterpoise guiding flights into Thừa Thiên Huế.

Operational station

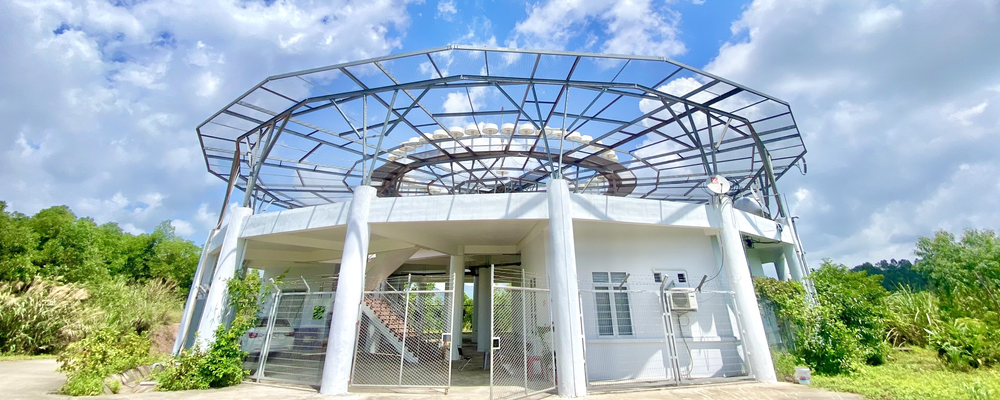

Vân Đồn CNS station (Quảng Ninh) VDO • VVVD
Northern region DVOR / DME

Vân Đồn CNS station (Quảng Ninh)

Modern private-invested international airport CNS facility equipped with high-precision DVOR/DME navigation.

Operational station

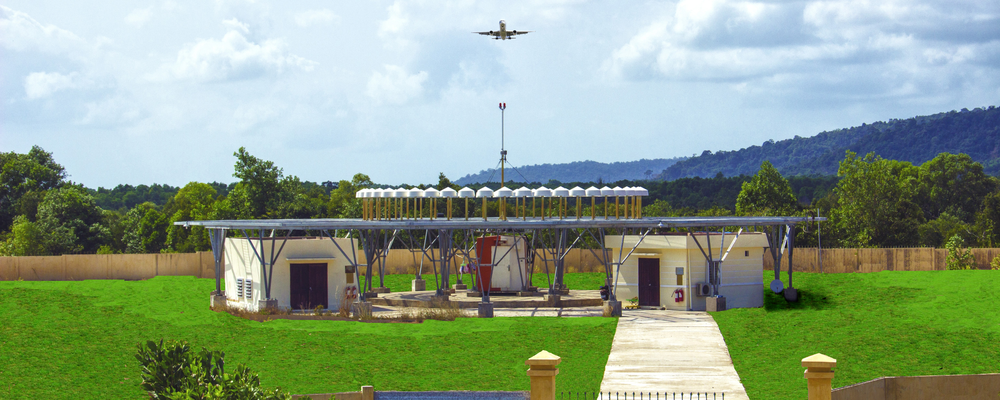

Phú Quốc island CNS station PQU • VVPQ
Maritime islands DVOR / DME

Phú Quốc island CNS station

Island international airport station facilitating high-volume international tourist flights in the Gulf of Thailand.

Operational station

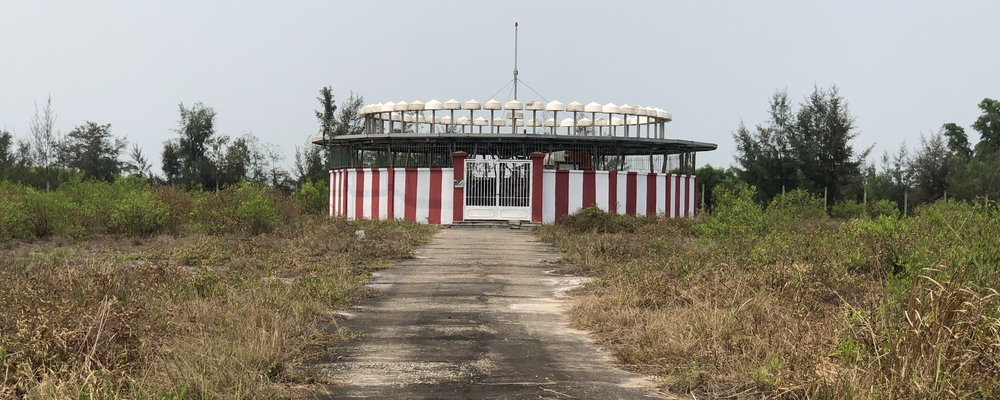

Côn Sơn island CNS station CSN • VVCS
Maritime islands DVOR / DME

Côn Sơn island CNS station

Challenging terrain island navigation facility providing vital radio guidance amidst mountainous coastal winds.

Operational station

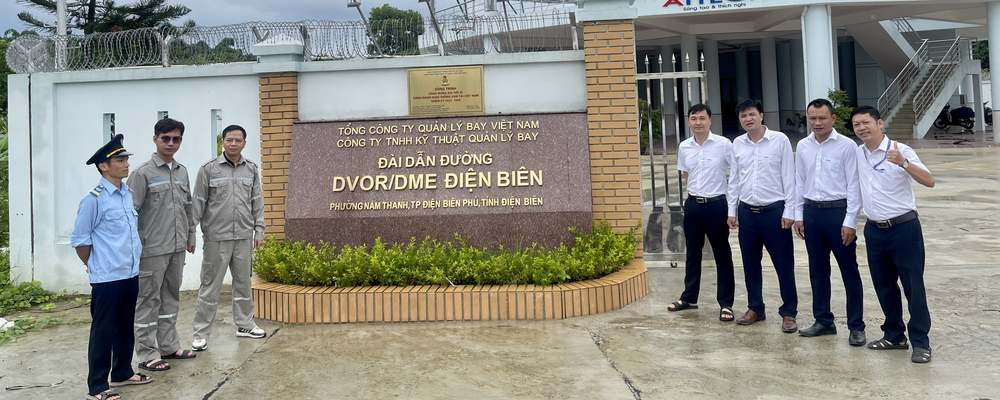

Điện Biên CNS station (Northwest) DBN • VVDB
Northern region DVOR / DME / ADS-B

Điện Biên CNS station (Northwest)

Valley navigation aid station in the northwest mountainous region ensuring flight safety in complex terrain.

Operational station

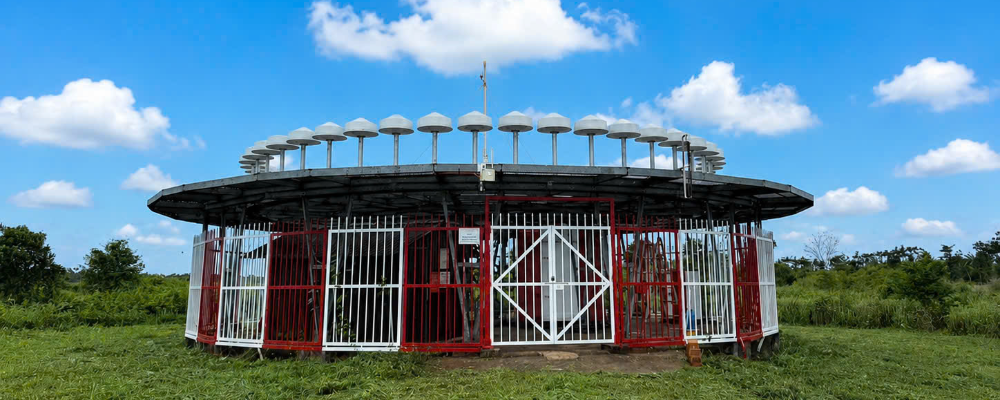

Buôn Ma Thuột CNS station (Highlands) BMT • VVBM
Central region DVOR / DME

Buôn Ma Thuột CNS station (Highlands)

Central Highlands aviation hub providing radial guidance across en-route mountain airway waypoints.

Operational station
Simulation portfolio

CNS/ATM aviation ground equipment systems

High-fidelity modeling of RF transmission, hardware block schematics, PMDT/RMS maintenance interfaces, and real-world failure scenarios from leading global manufacturers.

DVOR Ground Station Antenna Counterpoise
Korea (Mopiens MARU 1150) USA (Selex / FAA standard)
Navigation

DVOR (Doppler VHF Omnidirectional Range)

Doppler VHF Omnidirectional Range ground navigation system. Simulates a 50-antenna circular array electronically rotating at 30 rev/sec, generating 9960 Hz subcarrier FM and 30 Hz reference AM signals. Includes authentic PMDT maintenance terminal and RMS status software modeled after Mopiens DVOR-1150 (South Korea).

Operating frequency 108.000 – 117.975 MHz
Azimuth accuracy ± 0.5° Bearing error
Subcarrier frequency 9960 Hz ± 480 Hz FM
RF power output 100W – 200W Dual TX
Launch DVOR-1150 lab

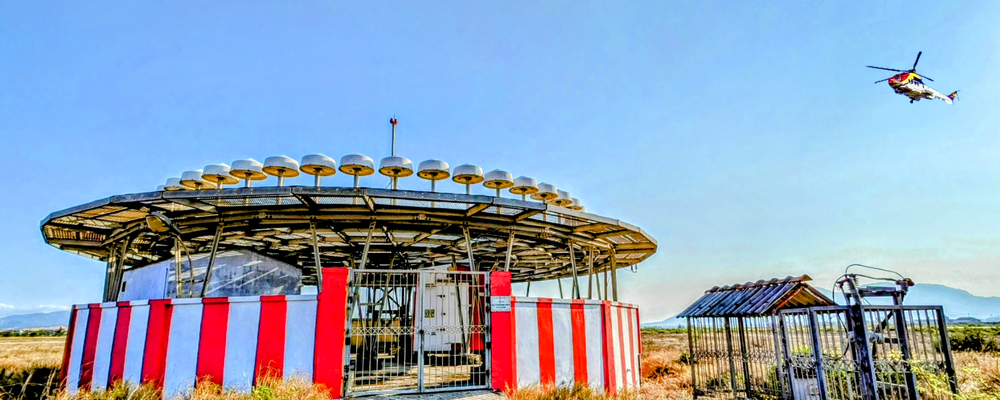

DME Ground Transponder Station
USA (Rockwell Collins / Moog) Indra (Normarc 7000 series)
Navigation

DME (Distance Measuring Equipment)

Ultra High Frequency (UHF) slant range navigation transponder. Fully simulates ground transponder reply delay of 50 μs (Mode X) / 36 μs (Mode Y), random interrogation pulse-pair decoder, and 2700 pp/s squitter pulse generation.

Operating frequency 960 – 1215 MHz (UHF)
System reply delay 50 μs ± 0.25 μs (X)
Peak pulse power 1 kW / 2.5 kW High power
Traffic capacity > 100 Aircraft simultaneous
Launch DME lab
ADS-B and Radar Ground Station
Indra (Air Solutions ADS-B) USA (FAA NextGen ADS-B out/in)
Surveillance

ADS-B (Automatic Dependent Surveillance-Broadcast)

Automatic Dependent Surveillance-Broadcast station compliant with ICAO Annex 10. Features real-time decoding of 1090 MHz Extended Squitter messages (DF17, DF18), NIC/NACp integrity calculations, ASTERIX Cat 021 protocol, and Indra Air Solutions ATM radar display.

Operating frequency 1090 MHz ± 1 MHz (PPM)
Data protocol ASTERIX Cat 021 v2.4
Message format 112 bit Mode S Long message
Operating coverage 250 NM Line-of-sight
Launch ADS-B lab
VHF Air-Ground Comms at Tan Son Nhat Tower
USA (Rockwell Collins 8.33kHz) Indra & Rohde & Schwarz (ATC voice)
Communication

VHF Air-Ground Comms (Aviation Transceiver)

Aviation VHF air-ground voice communication transceiver system. Simulates redundant 1+1 transceivers, AM demodulation, adjustable squelch threshold, 25 kHz / 8.33 kHz channel spacing, and EUROCAE ED-137 VoIP ATC recording.

Aviation frequency band 118.000 – 136.975 MHz
Channel spacing 25 kHz / 8.33 kHz ICAO
Modulation mode A3E (Double sideband AM)
Digital VoIP protocol EUROCAE ED-137B/C VoIP
Explore VHF lab scenarios
VSAT Satellite Dish Antenna for ATM Network
USA & Global CNS (Aeronautical VSAT) Indra (ATM WAN network)
Communication

VSAT Aviation (Aeronautical Satellite Network)

Very Small Aperture Terminal aeronautical satellite network connecting remote radar, ADS-B stations, and island navigation aids to Area Control Centers (ACC). Simulates C-band/Ku-band BUC/LNB, DVB-S2/RCS satellite modems, and path redundancy.

Satellite frequency band C-band (Extended) / Ku-band
Reflector antenna diameter 2.4m – 3.8m Cassegrain
Service availability 99.999% CNS Reliability
Carried data stream Radar stream + VHF audio
Explore VSAT scenarios
Founded May 2026 • 100% bootstrapped

Independent R&D, striving for aviation technology sovereignty

Founded in May 2026 by passionate avionics and software engineers, CNSVN chose a 100% bootstrapped path without external venture capital, staying laser-focused on engineering excellence, technical fidelity, and academic rigor.

At operational airports, allowing trainees or new engineers to test fault scenarios on live mission-critical CNS systems operating 24/7 is strictly prohibited for flight safety. CNSVN bridges this critical gap with digital simulation, enabling hundreds of fault injections without affecting real flight operations.

  • Strict engineering precision

    Based on official ICAO, FAA, and OEM technical manuals (Mopiens, Indra, Selex, Rockwell Collins).

  • Purpose-built for training & exams

    Scenario-based training, automated calibration checks, and comprehensive fault diagnosis grading.

// CNSVN SYSTEM STATUS
Founded date: May 2026
Funding status: Bootstrapped (0 external VC)
Lab endpoint: labs.cnsvn.com
Public web: cnsvn.com
Architecture: Next.js + Docker PaaS
Digital ecosystem

Explore the CNSVN ecosystem

Direct access to our live online simulation laboratory and open engineering repositories.

labs.cnsvn.com

Virtual laboratory platform at labs.cnsvn.com: trainee portal, interactive fault scenarios, hands-on DVOR, DME, ADS-B consoles, and real-time telemetry monitors.

Next.js 16 TypeScript TailwindCSS Zustand State PostgreSQL
Access labs.cnsvn.com

nhhaituhpy-hue/cns-simulation

Core simulation codebase on GitHub. Features functional block schematics, multiple-choice & practical exam engines, PMDT maintenance simulations, and technical guides.

GitHub Repo Open Architecture Automated CI/CD Docker Container
View GitHub repository
